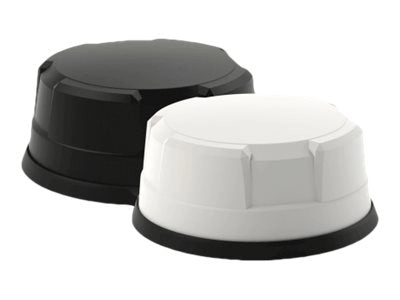

Panorama Antennas MAKO L[G]M[H]M4[B]-6-60[-24-58] - Antenna - dome - cellular, Wi-Fi - omni-directional - panel mountable

• Versatile compatibility
  Designed to seamlessly integrate with 4G, 5G, LTE, and Wi-Fi networks, this antenna offers broad compatibility ensuring reliable connectivity across a range of devices and applications.
• Robust design
  Featuring an IP69K rating for dust and water resistance, along with flame-retardant properties and a ground plane independent design, this antenna is built to withstand harsh conditions while maintaining optimal performance.
• Enhanced performance
  With its omnidirectional directivity and 4x4 MiMo feature, the antenna provides enhanced signal reception and transmission over a wide frequency range, ensuring uninterrupted connectivity and faster data speeds.

The MAKO 5G Dome is a range of high-performance 4x4 MiMo antennas covering 617-960/1710-6000 MHz.
The MAKO 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000 MHz offer MiMo/Diversity at cellular/LTE frequencies, up to 6 dual band elements covering 2.4 and 5.0/7.2 GHz support MiMo/Diversity operation for Wi-Fi and high-performance GPS/GNSS antenna with an integrated 26dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Although the LTE elements are designed for 4x4 MiMo operation, it is possible to utilize these as 2 pairs of 2x2 MiMo for a router that has 2 SIMS (radio) in a failover configuration (i.e. only one SIM active at any time). As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.
Guidance on the correct connection of the LTE antennas is provided in the installation instructions. Please Note: This antenna is not intended for use with a router that has 2 SIMS to provide concurrent or aggregated data operation, as there is not sufficient isolation between the MiMo pairs.

• Designed for LTE Cat 18/20 routers and devices
• Low profile antenna with up to 11 functions in 1
• Kits with extension cables available for a range of LTE routers
• Flame retardant cables compliant to UNECE R118
• Pre-terminated antenna connectors fitted as standard
• Cable flags attached for easy cable identification and installation
• Single hole panel mount installation
