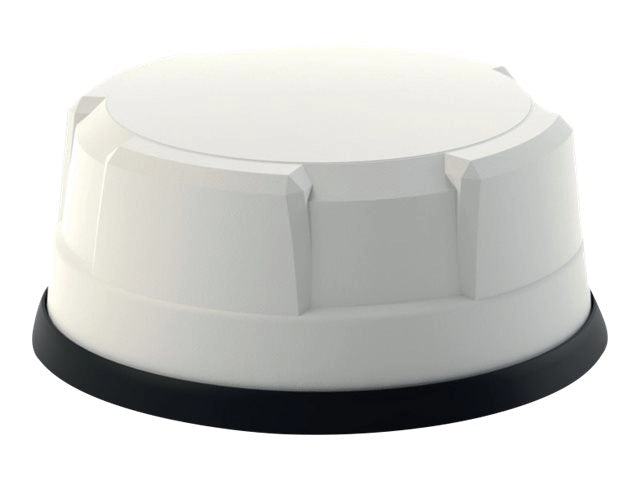

Panorama Antennas LG-IN2607-W - Antenna - radome - navigation, cellular, Wi-Fi, Bluetooth - 9 dBi - omni-directional - panel mountable - for Cradlepoint R1900-5GB
The LG-IN2607 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo Wi-Fi 2.4/5.0GHz Bluetooth function in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (compliant to UNECE 118.01 and EN45545-2) and a halogen-free flame-retardant radome the antenna is suitable for many environments and applications.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimize potential in band interference.
- Versatile compatibility
The LG-IN2607-W antenna is compatible with a wide range of communication systems including 2G, 3G, 4G, and 5G technologies, ensuring a seamless connection across various platforms. - Robust protection
With an IP69K rating, this antenna is resistant to dust and moisture, while the IK10 rating protects against mechanical impacts, making it ideal for outdoor applications. - Flexible installation options
Designed to be ground plane independent, the antenna can be mounted in various locations without requiring a specific setup, giving users freedom in placement. - Enhanced data handling
The 4x4 MiMo configuration allows for multiple data streams, improving overall network performance and reliability in high-demand environments. - Impressive gain
Featuring a gain of 9 dBi, the LG-IN2607-W antenna offers enhanced signal reception and transmission, ensuring connectivity over a wide range of frequencies.
The LG-IN2607 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo Wi-Fi 2.4/5.0GHz Bluetooth function in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (compliant to UNECE 118.01 and EN45545-2) and a halogen-free flame-retardant radome the antenna is suitable for many environments and applications.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimize potential in band interference.
- Low profile antenna with 8 functions in 1
- 4x4 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band Wi-Fi 1x Bluetooth function, GPS/GNSS in one housing
